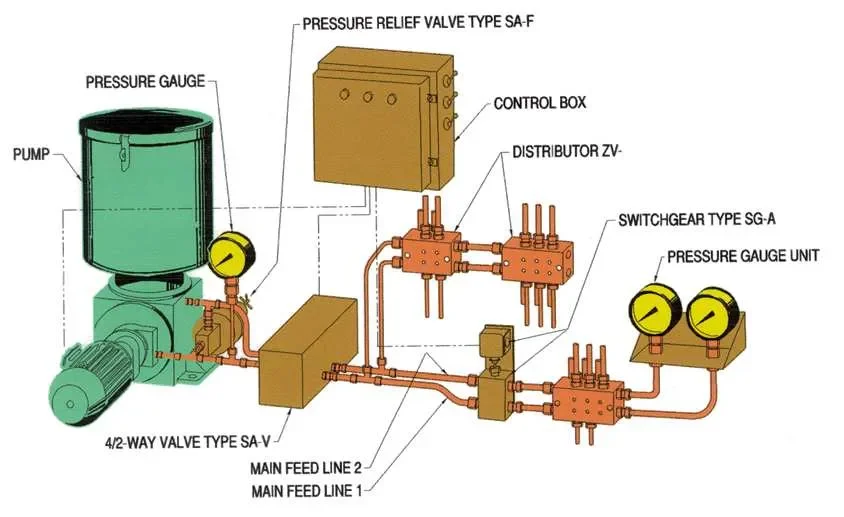

Dual Line

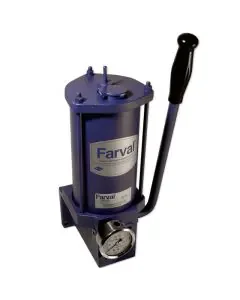

• DA Series Lever pump for Dual Line
• Steel Reservoir 2kg, 4kg, 6kg
• Discharge 7.4cc
• Pressure Gauge
• Internal Grease Filters
• Manually operated Changeover Valve
• Low level indicator

• BMB pump for Dual Line
• Steel Reservoir 8kg, 15kg, 30kg
• Discharge 2 and 4LPH
• Pressure Gauge
• Internal Grease Filters
• 400Bar with Adjustable Relief Valve
• Ultrasonic Low Level Sensor

• BSB pump for Dual Line
• Steel Reservoir 60kg, 100KG
• Discharge 7, 14, 21LPH
• Pressure Gauge
• Internal Grease Filters
• 400Bar with Adjustable Relief Valve
• Ultrasonic Low Level Sensor

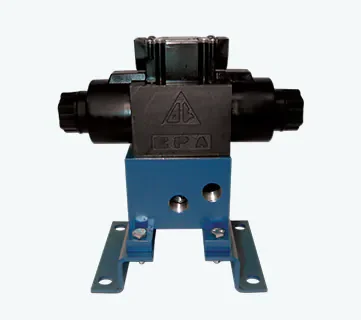

• Electric Operated Changeover for Dual Line
• 24vdc and 220vac Coils
• Function 4/2 way
• Working Pressure 400Bar

Order Codes

• 10-SAV11A00 110/220vac Coil
• 10-SAV24A00 24vdc Coil

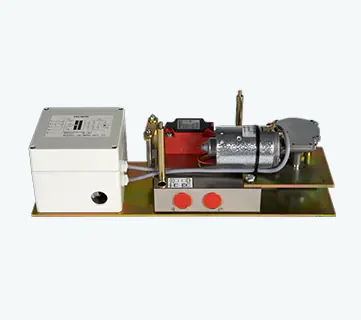

• Electric Operated Changeover for Dual Line
• 24vdc and 110/220vac Coils
• Function 4/2 way
• Working Pressure 350Bar

Order Codes

• 04-37149xxxxx
• x code voltage and accessories

• Hydraulic Operated Changeover for Dual Line
• Adjustment Range 40 - 350Bar
• Flow Rate 650cc/min
• 2 Pressure Gauges
• 1 Limit Switch
• Mounting Bracket

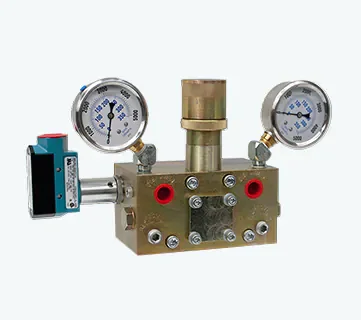

• Hydraulic Operated Changeover for Dual Line
• Adjustment Range 40 - 240Bar
• 2 Pressure Gauges
• 1 Limit Switch
• Mounting Bracket
• Grease Filter

Order Codes

• 04-DR45 Bare Valve
• 04-DR45K Valve + Limit Switch + Gauges
• 04-DR460A Valve + Limit Switch + Gauge + Filter
• + Mounting Bracket

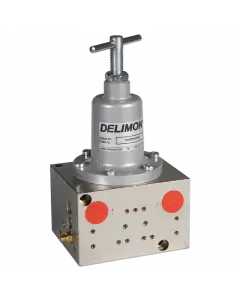

Order Codes

• 10-SAK25A00 Bare Valve 250Bar
• 10-SAK25A01 Valve 250Bar + Limit Switch
• 10-SAK25A02 Valve 250Bar + 2 x PNP Monitoring SW
• 10-SAK35A00 Bare Valve 350Bar
• 10-SAK35A01 Valve 350Bar + Limit Switch
• 10-SAK35A02 Valve 350Bar + 2 x PNP Switches

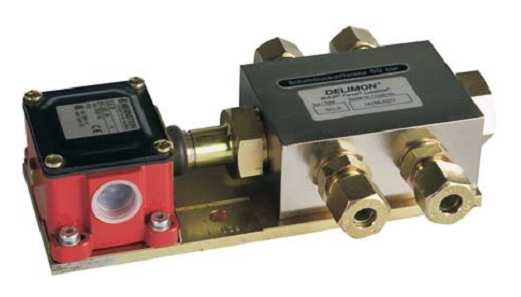

• Hydraulic Operated Limit Switch
• 2 Differential Pressure Options
• Rated to 400Bar

Order Codes

• 10-SGA05A00 50Bar Pressure Differential
• 10-SGA10A00 100Bar Pressure Differential

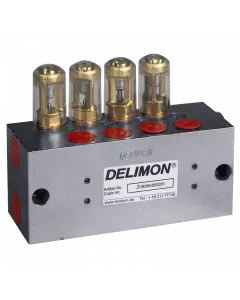

• ZVB Model
• Displacements 0.5, 1.5, 3.0cc
• Outlets 1-8
• With Adjustable Motion Indicators
• Rated to 400Bar

Flanged version of the ZVB available Model 10-ZVF

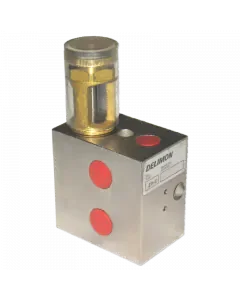

• ZVC Model
• Displacement 15cc
• Outlets 1-4
• With Adjustable Motion Indicators
• Rated to 400Bar

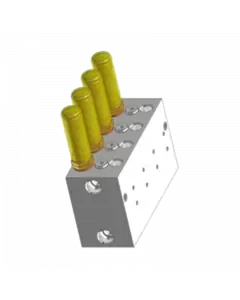

• DDU Model
• Displacement 3.5cc
• Outlets 1-8
• With Adjustable Motion Indicators
• Rated to 350Bar

• DDM / SDM Models
• Displacements 1cc 5cc 15cc
• Manifold Mounted
• With Adjustable Motion Indicators
• Rated to 350Bar

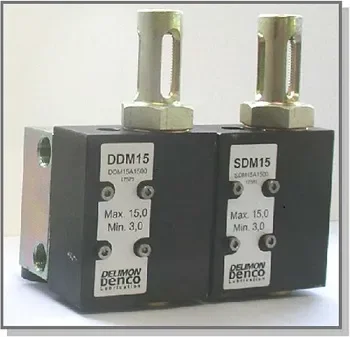

DDM15 15cc

SDM15 30cc

DDM = Double Outlet Valve

SDM = Single Outlet Valve

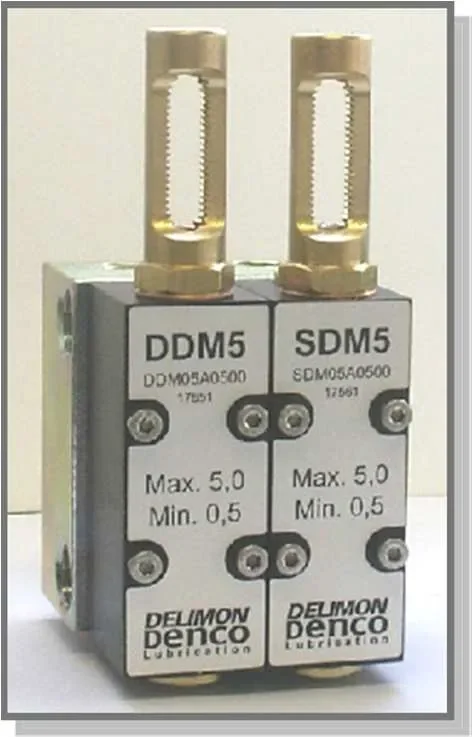

DDM5 5cc

SDM5 10cc

DDM1 1cc

SDM1 2cc

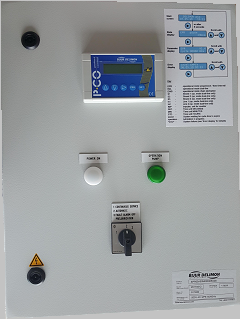

• PcO Models
• Full control of all Dual Line System inputs
• Electric and Hydraulic Changeover valves
• Voltages 110VAC 1 Phase to 500vac 3 Phase
• Monitoring Ultrasonic Low Level Sensor
• Auto Grease refill controls
• Alarm Outputs

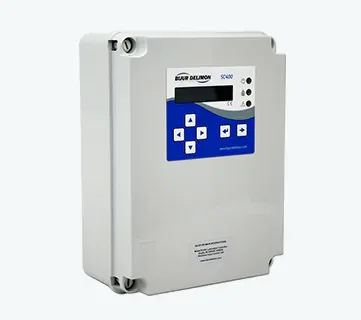

• SC400 Model
• Full control of all Dual Line System inputs
• Electric and Hydraulic Changeover valves
• Voltages 220/ 110VAC 1 Phase
• Monitoring Ultrasonic Low Level Sensor
• Auto Grease refill controls
• Zoning, Option
• Alarm Outputs
