Perma

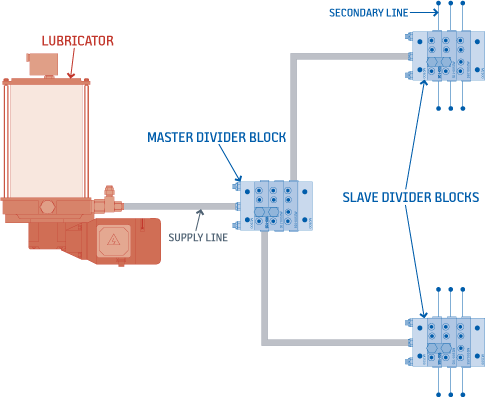

Divider
Pump Multiport

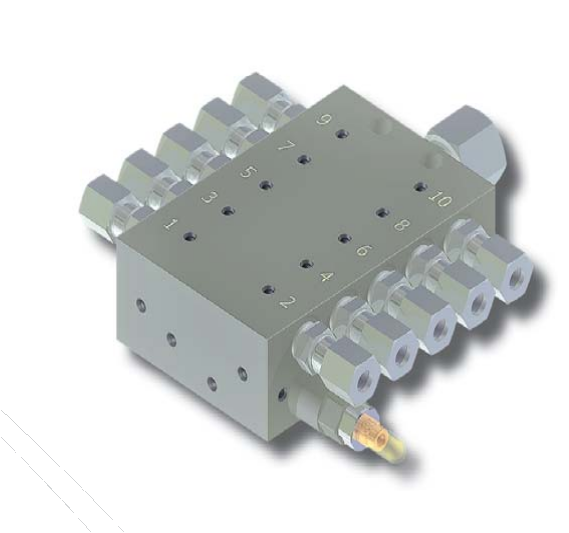

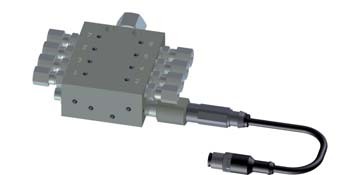

PVB VALVES

2-20 Outlets

Output per outlet 0.20cc/cycle

Pressure Max with Cycle Pin 160 Bar

Pressure Max no Cycle Pin 300 Bar

Grease to NLGI #3

Available in Steel and Stainless Steel

Outlet 6mm Check Valve fittings included with valve



Divider Valves Models

PVB

ZPA

ZPB

ZPC

M2500

3000 Series

FD

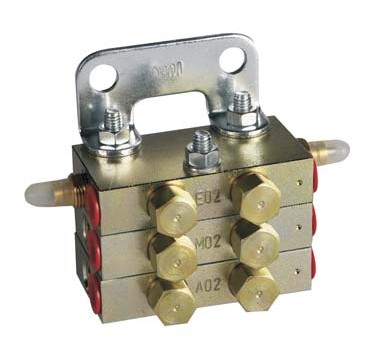

ZPA/ZPC

Up to 24 Outlets

3 Displacements 0.1  0.2   0.3cc/cycle

Motion Indicators and Swiches

Pressure 160 Bar

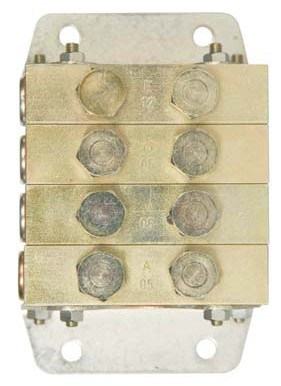

ZPB

Up to 24 Outlets

3 Displacements 0.5  1.2   2.0cc/cycle

Motion Indicators and Swiches

Pressure 300 Bar

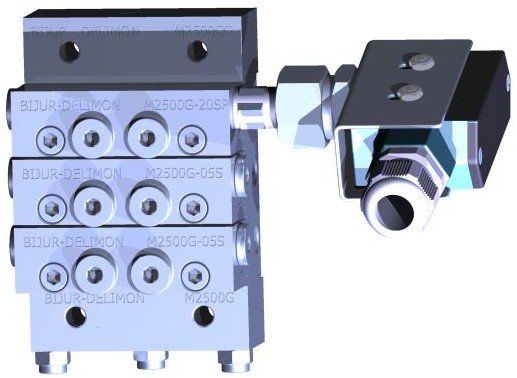

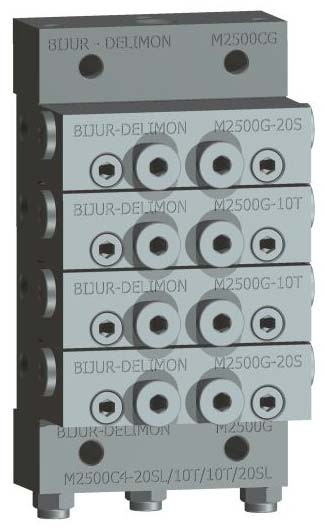

M2500G

6-20 Outlets

Displacements 0.08 - 1.31cc/cycle

Motion Indicators and Swiches

Pressure 400 Bar

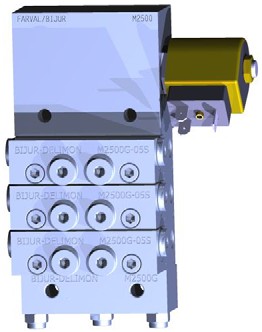

Integrated on/off Solenoid valves for system zoning

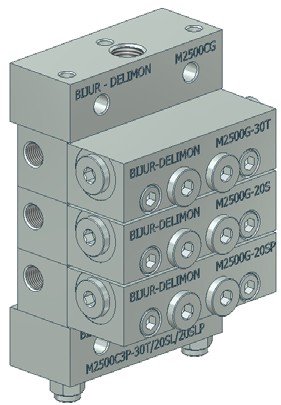

Cross porting and outlet port Pressure indicators



Mechanical Switches

Electronic switches for PLC

On/Off Solenoids for Zoning systems
Pressure indicators

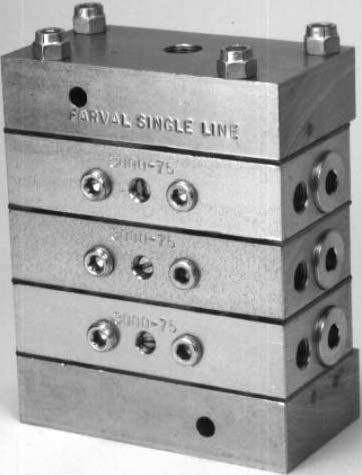

3000 Series

6-20 Outlets

Displacements 0.41 - 4.9cc/cycle

Motion Indicators and Swiches

Pressure 270 Bar

Cross porting and outlet port Pressure indicators

FD Series

2/3/4/6 Outlets

Displacements 2/3/4 @ 1.31cc/cycle

Displacement 6 @ 0.98cc/cycle

Motion Indicators

Pressure 207 Bar
